Heavy Industrial SPM
Model: NCT-SPM-33
Comprehensive Machine Overview

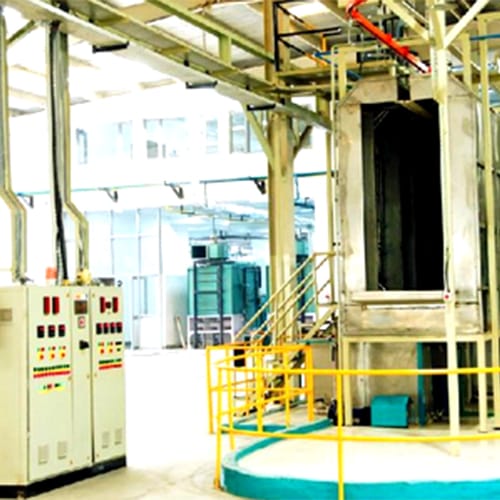

Manufactured at the National Cutting Tools works in Ludhiana, Punjab, the Liquid Painting Plant is optimized for <p>The Liquid Painting Plant by National Cutting Tools is an industrial dipping and coating setup engineered specifically for scaffolding manufacturers. Applying protective primer or enamel paint to long tubular standards, ledgers, and prop tubes by spray or manual roller is labor-intensive and results in uneven coating inside and outside the pipe. Our dipping system ensures complete internal and external coverage with uniform dry film thickness (DFT).</p>.
<p>The plant includes a heavy-duty steel dipping tank with internal circulation, a motorized overhead hoist or pneumatic dipping cradle, an angled draining section with recovery gutters, and an optional heated drying tunnel. Paint is continuously agitated to prevent pigment settling, and excess liquid drains back into the tank to eliminate overspray loss and reduce consumable costs.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Heavy Welded Immersion Tank:</strong> Fabricated from 5 mm to 8 mm mild steel plate with external stiffeners to support bundle weights up to 2.5 metric tons.</li>
<li><strong>Air-Operated or Motorized Hoist Cradle:</strong> Smooth dipping action prevents splashing while ensuring 100% paint penetration into tube interiors and welded joints.</li>
<li><strong>Sloped Drip Tray & Paint Return Channel:</strong> Recovers up to 95% of dripping paint, reducing material waste and keeping the workshop floor clean.</li>
<li><strong>Continuous Paint Circulation Pump:</strong> Explosion-proof pump system keeps paint thoroughly blended and maintains uniform viscosity across batches.</li>
<li><strong>Modular Tank Sizing:</strong> Tank lengths available from 3.5 m up to 7.0 m to accommodate standard 3-meter and 6-meter scaffold tubes and ladders.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Protective primer dipping for Cuplock and Ringlock verticals and ledgers</li>
<li>Enamel top-coating for adjustable scaffolding props and jack bases</li>
<li>Corrosion protection for fabricated structural steel tubes and angles</li>
<li>High-volume scaffold rental yard maintenance and refurbishment</li>
</ul>
<p>Designed and built at the NCT engineering works in Ludhiana. Custom tank layouts, overhead gantry integrations, and drying racks are engineered to match the customer factory footprint and output requirements.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Type | Painting Plant |
| Material | Steel |
| Painting Method | Spray, Dip |
| Material Handling | Suitable For Various Materials Like Metal, Plastic, Wood, Furniture |
| Surface Finish | Painted |
| Capacity | Depends On Conveyor Size, Production Speed |
| Power Source | Electric Motor |
| Safety Features | Explosion-proof Enclosures For Flammable Paints |
| Control Type | Programmable Logic Controller |
| Maintenance | Regular Cleaning Of Paint Booths, Maintenance Of Pumps |
| Accuracy | Accuracy Depends On Paint Viscosity |
| Usage | Automotive Parts, Furniture Appliances, Consumer Goods |
| Features | Easier To Use, Crack Proof, Reliable Performance, Flexibility, Durability Etc |
| Manufacture By | National Cutting Tools |
| Country Of Origin | India |
