Standard Cuplock Welding Machine

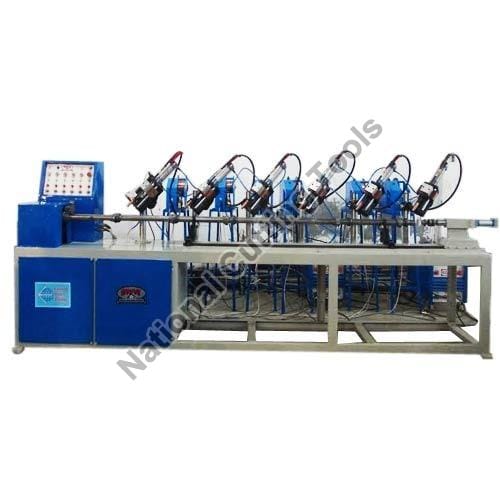

Engineered for high-throughput production in demanding fabrication environments, the Standard Cuplock Welding Machine by National Cutting Tools is built for <p>The Standard Cuplock Welding Machine is an automated multi-station machine engineered for circumferential MIG welding of pressed steel bottom cups onto 48. 3 mm OD vertical scaffold standards. The Cuplock scaffolding system relies on firmly welded bottom cups to retain horizontal ledgers; incomplete weld fusion or irregular bead height prevents the top cup from locking down securely, compromising safety on construction sites.</p>.

<p>Built with a rigid IS 2062 fabricated bed, this machine features heavy-duty rotary chucks, a synchronized motorized spindle drive, and precision linear positioning stops at standard 500 mm pitch intervals. Dual or multi-torch MIG welding heads apply circular fillets with controlled 360-degree rotation and crater-fill overlap, delivering uniform weld penetration that easily exceeds BS 1139 and EN 74 structural requirements.</p>

<h3>Key Features</h3>

<ul>

<li><strong>Precision 500 mm Cup Pitch Stops:</strong> Hardened linear index blocks guarantee exact spacing of bottom cups along the 1.0m, 1.5m, 2.0m, 2.5m, and 3.0m vertical standard.</li>

<li><strong>Dual Torch Circular Welding:</strong> Two synchronized welding torches weld opposing sides or consecutive cups, doubling throughput compared to single-torch machines.</li>

<li><strong>Pneumatic Clamping & Alignment Jigs:</strong> Self-centering pneumatic jaws clamp the pipe while custom cup holders press the bottom cup firmly against the tube wall.</li>

<li><strong>Automated Arc Sequencing:</strong> Controller synchronizes gas pre-flow, high-frequency arc start, tube rotation, crater fill, and post-flow in a single push-button cycle.</li>

<li><strong>Heavy Welded Steel Frame:</strong> Submerged-arc welded box-section chassis normalized to relieve internal stresses and maintain spindle concentricity over long shifts.</li>

<li><strong>Universal Welding Power Source Compatibility:</strong> Connects directly with any standard 350A or 500A MIG welding power source (Lincoln, ESAB, Panasonic).</li>

</ul>

<h3>Applications</h3>

<ul>

<li>Cuplock scaffolding vertical standard (upright) fabrication</li>

<li>Bottom cup attachment on heavy-duty shoring tower verticals</li>

<li>Refurbishment and re-cupping of used scaffold standards in rental fleets</li>

<li>High-output modular scaffolding production for domestic and export contractors</li>

</ul>

<p>Manufactured at the National Cutting Tools plant in Ludhiana, Punjab. Comprehensive pre-dispatch testing includes welding customer-supplied bottom cups onto sample tubes and verifying cup spacing tolerance within ±0.5 mm before dispatch.</p>
