Heavy Industrial SPM
Model: NCT-RWM-STD
Comprehensive Machine Overview

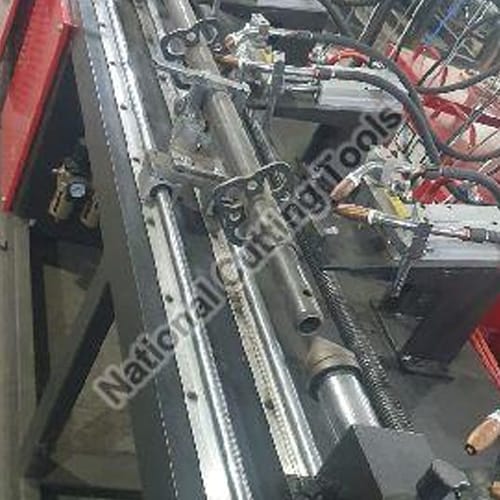

Designed to maintain strict dimensional tolerances under continuous multi-shift production, the Standard Ringlock Welding Machine provides <p>The Standard Ringlock Welding Machine is an automated special-purpose machine engineered for circular MIG welding of 8-hole Ringlock rosettes onto 48. 3 mm nominal OD vertical standards. Attaching multi-rosette clusters manually results in angular misalignment, spatter buildup in rosette wedge pockets, and inconsistent penetration that can cause failure during EN 12810 structural pull-out testing.</p>.
<p>Constructed on a heavy, stress-relieved IS 2062 chassis, the machine features dual synchronized MIG torches, an induction-hardened hollow spindle drive, and a linear rail with pneumatic indexing stops at exact 500 mm center-to-center pitch intervals. The machine completes circumferential welds with programmable 15-degree overlap around each rosette in 25 to 35 seconds per cluster, replacing up to four manual welding stations.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Dual Synchronized MIG Torches:</strong> Welds top and bottom circular fillets simultaneously, balancing heat input to prevent tube distortion.</li>
<li><strong>500 mm Linear Indexing Pitch:</strong> Hardened gauge stops ensure precise standard spacing across pipe lengths of 0.5 m, 1.0 m, 1.5 m, 2.0 m, and 3.0 m.</li>
<li><strong>PLC & Touchscreen HMI Interface:</strong> Stores multiple recipe parameters for wire feed speed, rotation RPM, pre-flow, and crater-fill timing.</li>
<li><strong>Integrated Rosette Positioning Jigs:</strong> Case-hardened locating fixtures position rosettes at exact 90-degree and 45-degree orientations with spatter shielding.</li>
<li><strong>Pneumatic Clamping & Ejection:</strong> Centers the tube on the spindle axis in under two seconds and lifts finished standards onto roll-off skids.</li>
<li><strong>Wide Grid Voltage Compatibility:</strong> Built for 380V/415V 50Hz/60Hz grids with industrial Schneider/Siemens switchgear for GCC and European export markets.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Ringlock scaffolding vertical standard (upright) fabrication</li>
<li>Modular all-round scaffolding manufacturing</li>
<li>Heavy shoring tower vertical component production</li>
<li>High-volume scaffold export production lines</li>
</ul>
<p>Manufactured and fully assembled at National Cutting Tools in Focal Point, Ludhiana. Pre-dispatch inspection includes sample welding, rosette pitch tolerance checks (within ±0.5 mm), and weld penetration validation.</p>
High-Yield Production Capabilities & Advantages
Multi-Torch Simultaneous Rosette Welding
Dual synchronized MIG torches weld top and bottom circular fillets around each rosette simultaneously, preventing thermal distortion and cutting cycle times by 65%.
25–35s Rapid Cycle Time per Cluster
Achieves continuous production of 80 to 110 completed rosette joints per hour at 85% operator efficiency, replacing up to 4 manual certified welding stations.
4.0–5.5 mm Controlled Fillet Throat
Continuous motorized rotation eliminates start-stop cold laps, producing deep, spatter-free weld beads meeting stringent BS 1139 and EN 12810 structural pull-out criteria.
Precision 500 mm Rosette Indexing Pitch
Hardened linear indexing rail and pneumatic gauge blocks guarantee exact 500 mm center-to-center pitch tolerance (within ±0.5 mm) across standards up to 3000 mm.
Pneumatic Tube Clamping & Auto-Ejection
Heavy-duty pneumatic self-centering chucks lock raw pipe in 1.5 seconds. A post-weld pneumatic lift cradle unloads the hot vertical standard directly onto gravity discharge rollers.
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Model Designation | NCT-RWM-STD |
| Input Pipe Diameter | 48.3 mm (OD) |
| Pipe Wall Thickness Scope | 2.5 mm to 4.0 mm |
| Standard Rosette Pitch | 500 mm Standard (Adjustable) |
| Length Adjustment Range | 500 mm to 3000 mm |
| Torch Travel / Indexing | Pneumatic / Rotary Mechanical Indexing |
| Operating Cycle Time | 25 to 35 seconds per rosette cluster |
| Welding Power Source Compatibility | 350A / 500A Inverter MIG/MAG (Multi-Torch) |
| Pneumatic Air Consumption | 6 to 8 Bar (Clean Dry Air) |
| Control System | Delta / Mitsubishi PLC with Touch Screen HMI |
| Electrical Power Supply | 380V / 415V, 3-Phase, 50/60 Hz |
| Operating Voltage | 24V DC Safe Control Circuit |
| Production Yield | 80 to 110 rosette joints per hour |
| Dimensions (L × W × H) | 4500 × 900 × 1600 mm Approx. |
| Machine Weight | 2200 Kgs Approx. |
| Chassis Frame Material | Heavy Stress-Relieved IS 2062 Steel |
| Factory Pre-Dispatch Run-Off | 100% Tested on Live Pipe Samples with Video Protocol |
Machine Architecture & Mechanical Construction
Stress-Relieved Chassis Bed (IS 2062)
Constructed from heavy 25 mm thick structural steel plate and heavy box-channels, thermally normalized and plano-milled to preserve sub-millimeter axial alignment across 3.5-meter bed spans.
Induction-Hardened EN8/EN9 Spindle
Large-bore hollow spindle machined from EN8/EN9 alloy steel, rotating on heavy pre-loaded tapered roller bearings driven by a 2.0 HP motor with variable frequency speed regulation.
Precision Rosette Positioning & Spatter Shields
Drop-in case-hardened jigs locate 8-hole Ringlock rosettes at exact 90° and 45° orientations. Integrated copper spatter guards protect rosette wedge slots from stray molten metal.
IP54 Dust-Proof Electrical Enclosure
Forced-air cooled IP54 cabinet housing Delta/Mitsubishi PLC, color touchscreen HMI, Schneider switchgear, and universal multi-pin trigger interfaces for Lincoln, Panasonic, and OTC power sources.
Industrial Plant Integration & Fabrication Flow
Balanced production beat eliminating fabrication queue bottlenecks.
Pipe Cold Sawing
Raw 48.3 mm OD steel tube is cut to finished standard length (1m to 3m) with square, burr-free ends.
Rosette Position Jigs
Pre-stamped 8-hole rosettes are placed into pneumatic locator fixtures along the linear indexing rail.
NCT Ringlock MIG Welder
Dual MIG torches strike simultaneous circular arcs, completing 360°+15° crater fill in 25–35 seconds.
Proof Test & Galvanizing
Rosette weld joints undergo 100 kN torque/pull-out proof testing prior to hot-dip galvanizing baths.
Standard Ringlock Welding Machine Works QA & Export Packaging Protocol
✓ Circumferential Arc & Pneumatic Alignment Trials
- • Rotary Spindle Concentricity: Spindle chuck and pneumatic tailstock axial alignment verified within 0.08 mm to ensure uniform rotation without tube run-out.
- • Continuous Arc Cycle Testing: Minimum 25 continuous 360-degree weld runs executed on sample pipes to verify torch angle, arc stability, and bead penetration.
- • Macro-Etch Penetration Check: Cut-section metallurgical inspection of weld beads to confirm root penetration meeting BS 1139 and EN 12810 standards.
- • Run-Off Video Recording: Trial welding cycle on your specified tube diameter recorded in HD and shared for formal technical sign-off prior to dispatch.
Seaworthy Automated Station Packaging (ISPM-15)
- • Torch Carriage Bracing: Pneumatic slides, welding torch brackets, and rotary spindles locked with heavy-duty mechanical transport braces.
- • VCI Moisture Protection: Copper heat sinks, clamping jaws, and bare electrical contacts treated with volatile corrosion inhibitor (VCI) film.
- • Solid Timber Crating: Fumigated ISPM-15 certified solid pine wood crate with waterproof polyethylene outer envelope.
- • Container Lashing Points: Heavy structural skid base with internal corner tie-down brackets for ocean container transport.
