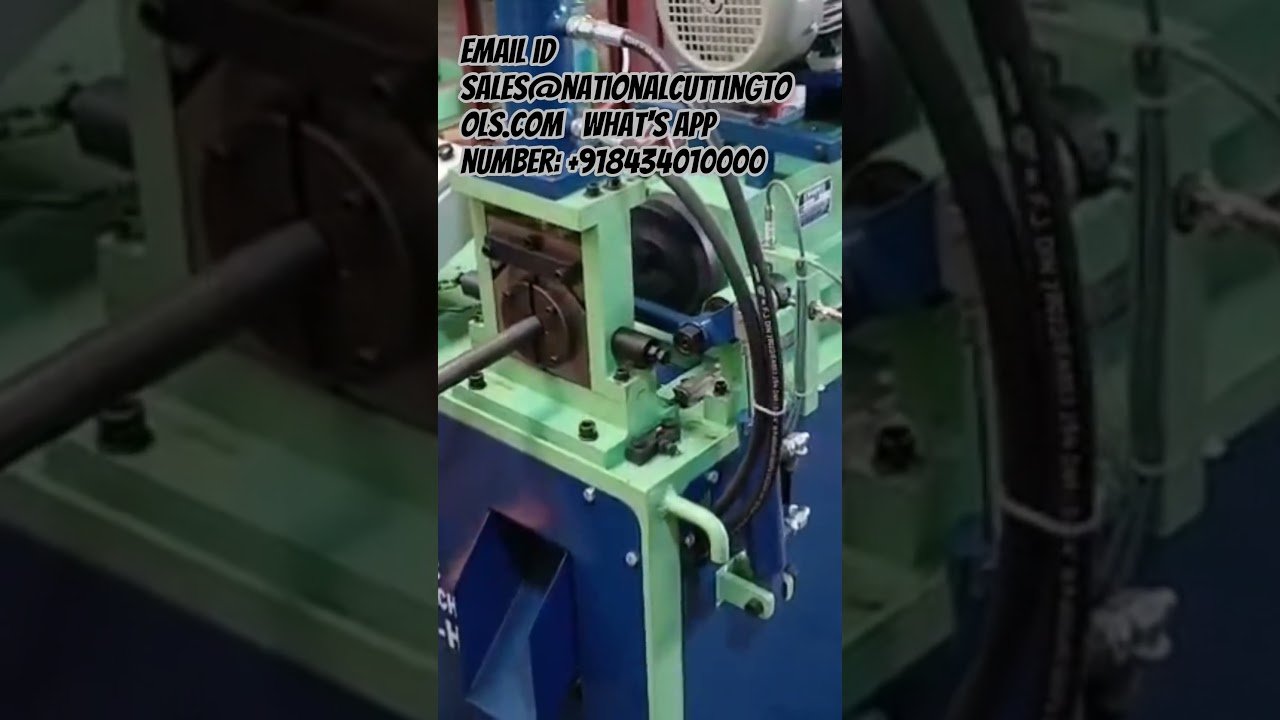

Bar Chamfering Machine

The Bar Chamfering Machine is a dedicated industrial system engineered by National Cutting Tools for <p>The Bar Chamfering Machine by National Cutting Tools is an automated production machine tool engineered for chamfering and deburring the ends of solid round bars, bolts, foundation studs, and shaft blanks. Cut bars frequently feature sharp burrs and square corners that jam in automated feeder bowls, damage threading die chasers, and prevent smooth thread engagement; chamfering creates a smooth 45-degree lead-in bevel that protects tooling and speeds assembly.</p>.

<p>Constructed with a heavy-duty cast frame and a motorized spindle holding adjustable carbide cutting tools, the machine processes bar diameters from 10 mm up to 75 mm. Workpieces are clamped in a self-centering pneumatic vise and fed into the rotating cutter head, completing a clean, uniform chamfer in under 3 to 5 seconds per bar end.</p>

<h3>Key Features</h3>

<ul>

<li><strong>High-Speed Chamfering Cycle:</strong> Completes clean 45-degree chamfers on solid steel bars in 3 to 5 seconds, supporting high daily production volumes.</li>

<li><strong>Dual Indexable Carbide Tooling:</strong> Cutter head carries standard indexable carbide inserts that can be indexed four times before replacement.</li>

<li><strong>Pneumatic Self-Centering Vise:</strong> Dual-action pneumatic jaws center round bars on the cutter spindle axis in under one second.</li>

<li><strong>Adjustable Chamfer Depth Stop:</strong> Micro-metric length stop regulates bevel width from 1 mm up to 5 mm to match blueprint specifications.</li>

<li><strong>Through-Bore or Heavy Bed Frame:</strong> Accommodates short bolts and long continuous tie rods with equal rigidity and stability.</li>

<li><strong>Integrated Chip Chute:</strong> Directs metal shavings into an easily removable swarf bin, keeping the work area clean.</li>

</ul>

<h3>Applications</h3>

<ul>

<li>Lead-in end chamfering on foundation bolts and anchor studs prior to thread rolling</li>

<li>Billet end preparation for induction heating and cold/hot forging lines</li>

<li>Shaft blank end deburring for automotive and electric motor manufacturing</li>

<li>Scaffolding tie rod and jack screw rod blank end preparation</li>

</ul>

<p>Built under strict ISO 9001:2015 quality standards at our Ludhiana facility. Factory tested on high-tensile solid steel bar samples to verify chamfer symmetry and cycle speed before release.</p>
