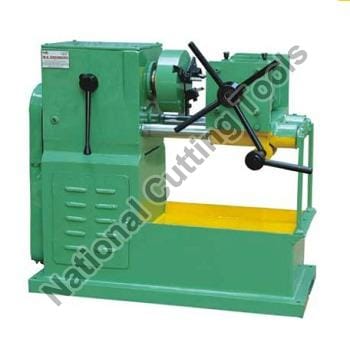

Pipe End Facing Machine

The Pipe End Facing Machine is a dedicated industrial system engineered by National Cutting Tools for <p>The Pipe End Facing Machine by National Cutting Tools is an industrial machine tool engineered for rapid squaring, end-facing, and inside/outside deburring of steel pipes and tubes. When pipes are cut using bandsaws or shearing blades, cut ends frequently exhibit burrs, slight out-of-squareness, or ragged edges that compromise subsequent automated welding or threading operations; this dedicated facing machine creates true 90-degree square ends with clean chamfers.</p>.

<p>Equipped with a high-torque electric motor, an all-geared spindle, and a multi-tool cutter head carrying indexable carbide inserts, the machine faces the pipe end while simultaneously applying internal and external deburring chamfers in a single forward pass. Heavy self-centering pneumatic or hydraulic clamps lock the pipe rigid, guaranteeing true perpendicularity to the pipe centerline across diameters from 1/2" up to 6" nominal bore.</p>

<h3>Key Features</h3>

<ul>

<li><strong>Simultaneous Facing & Dual Chamfering:</strong> Multi-tool cutter head faces the end, deburrs the ID, and chamfers the OD in a single cutting stroke.</li>

<li><strong>Indexable Carbide Insert Tooling:</strong> Standard ISO carbide inserts deliver mirror-smooth surface finish with minimal tool replacement cost.</li>

<li><strong>Self-Centering Power Vise:</strong> Heavy pneumatic or hydraulic clamping jaws grip pipes firmly without crushing thin wall sections.</li>

<li><strong>Rigid Cast-Iron Headstock:</strong> High-rigidity spindle mounting prevents tool chatter and produces dead-square pipe ends within 0.05 mm.</li>

<li><strong>Rapid Automatic Feed Cycle:</strong> Fast approach, regulated cutting feed, and instant retraction complete pipe end prep in under 10 seconds.</li>

<li><strong>Wide Diameter Adjustability:</strong> Toolholder radius adjusts quickly to handle pipe diameters from 20 mm up to 168 mm.</li>

</ul>

<h3>Applications</h3>

<ul>

<li>Pre-weld squaring for automated scaffolding standard and ledger welding lines</li>

<li>Pipe end preparation prior to thread cutting on pipe threading machines</li>

<li>Deburring cut-to-length tubes for automotive exhaust and chassis components</li>

<li>Boiler, heat exchanger, and high-pressure hydraulic tube end facing</li>

</ul>

<p>Built under strict ISO 9001:2015 quality standards at our Ludhiana works. Tested on commercial pipe stock for end squareness and surface finish before dispatch across India and overseas.</p>
