Heavy Industrial SPM
Model: NCT-SPM-47

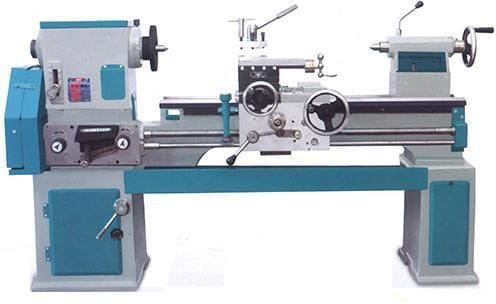

Heavy Duty Lathe Machine running at the works
Comprehensive Machine Overview
The Heavy Duty Lathe Machine is a dedicated industrial system engineered by National Cutting Tools for <p>The Heavy Duty Lathe Machine by National Cutting Tools is an all-geared industrial machine tool engineered for heavy-stock turning, facing, boring, and threading on large forged shafts, pipe ends, hydraulic cylinder barrels, and rolling mill rolls. In heavy engineering and repair yards, cutting through high-tensile forgings requires deep rigidity to prevent tool chatter, bed twist, and taper error over long bed spans.</p>.
<p>Cast from high-grade, close-grained 250 BHN alloy cast iron with deep diagonal cross-ribbing, the bed features induction-hardened guideways (45–50 HRC) ground to strict DIN toolroom tolerances. The large-bore alloy spindle, mounted on precision preloaded taper roller bearings, delivers massive high-torque power through multi-speed headstock gearing for smooth, chatter-free cuts on heavy steel billets.</p>
<h3>Key Features</h3>
<ul>
<li><strong>High-Tensile Graded Cast Bed:</strong> Induction-hardened and ground bed ways resist abrasive wear and maintain center alignment under heavy work loads.</li>
<li><strong>Large-Bore Forged Spindle:</strong> Hollow spindle machined from forged EN-8/EN-9 steel accommodated large-diameter pipe and bar stock.</li>
<li><strong>Multi-Speed All-Geared Headstock:</strong> Enclosed splash-lubricated gearbox delivers a wide range of speeds for heavy roughing and fine finishing.</li>
<li><strong>Heavy Box-Way Saddle & Apron:</strong> Fully enclosed apron with power feed interlocks for longitudinal and cross turning feeds.</li>
<li><strong>Rigid Tailstock with Tangential Clamp:</strong> Heavy tailstock with graduated quill provides firm support for long shafts between centers.</li>
<li><strong>Complete Thread Cutting Capability:</strong> Built-in quick-change gearbox cuts metric, Whitworth, module, and diametral pitch threads without loose gears.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Heavy industrial shaft and roller turning for steel rolling mills</li>
<li>Large hydraulic cylinder barrel and ram machining</li>
<li>Flange facing, pipe boring, and heavy threading operations</li>
<li>Mining, railway, and marine component engineering</li>
</ul>
<p>Manufactured at the National Cutting Tools works in Focal Point, Ludhiana. Tested for spindle runout (within 0.005 mm), bed straightness, and heavy roughing stability prior to factory dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Automation Grade | CNC |
| Max Swing Over Bed | 500 – 750 mm |
| Max Turning Diameter | 1000 – 1500 mm |
| Height of Centre | 175 – 400 mm |
| Range of Spindle | 1200 rpm |
Heavy Duty Lathe Machine Works QA & Export Packaging Protocol
✓ Heavy Forging Turning & Deep Bed Rigidity Validation
- • High-Torque Spindle Bearings Trial: Extra-large hollow spindle tested on preloaded taper roller bearings with radial run-out verified within 0.01 mm.
- • Heavy Stock Removal Deflection Check: Rough turning trials on 200 mm diameter solid forged steel bar to confirm zero bed twist or toolpost deflection.
- • All-Geared Headstock Thermal Run: 48-hour continuous gear train test across all 12 forward/reverse speeds ensuring oil sump temperature remains below 50°C.
- • Large Shaft Machining Recording: Pre-dispatch video showing facing, turning, and thread cutting on heavy billet sent for buyer sign-off.
Heavy Duty Lathe Ocean Freight Packaging (Over 4,000 kg)
- • Heavy Guideway Petroleum Slushing: Induction-hardened bedways coated with extreme-pressure anti-corrosion grease and waxed paper.
- • Compound Slide & Apron Anchor: Heavy carriage and apron mechanically clamped and timber-braced to bed to prevent sliding during ship roll.
- • VCI Vapor Emitters: Corrosion inhibitor packs placed in motor junction boxes and hollow spindle cavity.
- • Steel-Reinforced Heavy Timber Skids: Solid wooden runner platform reinforced with steel channel plates and container mooring brackets.
