Heavy Industrial SPM
Model: NCT-SPM-49
Comprehensive Machine Overview

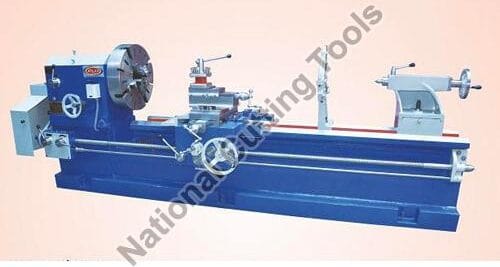

Designed to maintain strict dimensional tolerances under continuous multi-shift production, the Medium Duty Lathe Machine provides <p>The Medium Duty Lathe Machine by National Cutting Tools is an all-purpose industrial machine tool designed for job shops, ancillary manufacturing units, maintenance toolrooms, and scaffolding fabrication plants. It provides the ideal balance between rigid metal-removal capability and sensitive precision control, handling day-to-day turning, facing, boring, knurling, and threading operations efficiently.</p>.
<p>Built with a high-grade cast iron bed featuring flame-hardened and ground guideways, the machine incorporates a multi-speed headstock, an all-geared or belt-drive spindle, and a comprehensive screw-cutting gearbox. It cuts full ranges of metric, Whitworth, and modular threads, while the precision apron and compound slide ensure smooth handwheel response and fine surface finish on steel, cast iron, and non-ferrous metals.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Flame-Hardened Cast Iron Bed:</strong> High-rigidity monobloc casting absorbs cutting forces and maintains alignment over years of workshop service.</li>
<li><strong>Versatile Multi-Speed Headstock:</strong> Wide speed range enables efficient high-speed finishing cuts and high-torque low-speed threading.</li>
<li><strong>Universal Quick-Change Gearbox:</strong> Threading gearbox cuts metric and imperial threads without requiring change-gear swapping.</li>
<li><strong>Graduated Compound Rest:</strong> Precision 360-degree swivel compound slide allows accurate taper turning and beveling operations.</li>
<li><strong>Safety Interlocked Apron:</strong> Prevents simultaneous engagement of lead screw and feed rod, safeguarding feed gears from accidental overload.</li>
<li><strong>Built-In Coolant Sump & Pump:</strong> Directs filtered cutting fluid to the tool tip, keeping tools sharp and workpieces cool.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>General maintenance workshops and machinery repair facilities</li>
<li>Automotive ancillary turning and bushing manufacturing</li>
<li>Scaffolding plant toolroom and maintenance operations</li>
<li>Educational technical institutes and industrial training centers</li>
</ul>
<p>Manufactured and fully assembled at our Ludhiana plant. Every machine undergoes geometrical accuracy testing in accordance with IS 1878 standards before packing for dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Automation Grade | CNC |
| Max Swing Over Bed | 750 – 1000 mm |
| Height of Centre | 216 mm |
| Max Turning Diameter | 1500 – 2000 mm |
| Swing Over Bed | 423 mm |
| Power Required | Up to 2 HP |
| Speed | 1440 rpm |
| Spindle Diameter | 50.8 mm |
Medium Duty Lathe Machine Works QA & Export Packaging Protocol
✓ Precision Toolroom Turning & Thread Cutting Alignment
- • Toolroom Slideway Flatness Alignment: Bedway parallelism and saddle travel flatness tested to DIN 8606 toolroom standards (deviation < 0.015 mm per 1000 mm).
- • Multi-Pitch Gearbox Engagement: Universal quick-change gearbox tested across metric, Whitworth, module, and diametral pitch threading leads.
- • Fine Surface Finish Verification: Finish cut trials on mild steel workpiece confirming surface roughness Ra < 0.8 μm without harmonic chatter.
- • Inspection Chart Documentation: Comprehensive DIN inspection certificate with spindle run-out and tailstock alignment readings supplied with crate.
Precision Lathe Machine Seaworthy Protection
- • Toolroom Slideway Anti-Rust Barrier: Precision-ground surfaces treated with microcrystalline moisture-displacing protective oil.
- • Tailstock Transit Lock: Tailstock clamped firmly against bedways with high-tensile locking bolts and hardwood blocks.
- • Desiccant Moisture Control: Multi-pack silica gel placed inside gear change cabinet to eliminate maritime condensation.
- • Fully Enclosed ISPM-15 Timber Crate: Export-grade plywood and solid timber box bearing phytosanitary compliance marks.
International Shipping Destinations & India Supply Network
National Cutting Tools manufactures and configures the Medium Duty Lathe Machine for seamless integration into international fabrication lines and domestic scaffolding manufacturing plants. All machinery is customized for local electrical grids, certified for regional compliance, and dispatched with seaworthy protective packaging.
Primary International Export Destinations
All Export Hubs →Pan-India Fast Freight Dispatch (Ludhiana Works)
India Directory →Full-truckload (FTL) and part-load freight dispatch directly from our central manufacturing works at Focal Point, Ludhiana. Factory engineers provide on-site leveling, tool alignment, and operator training across all major industrial manufacturing clusters:
