Heavy Industrial SPM
Model: NCT-SPM-38
Comprehensive Machine Overview

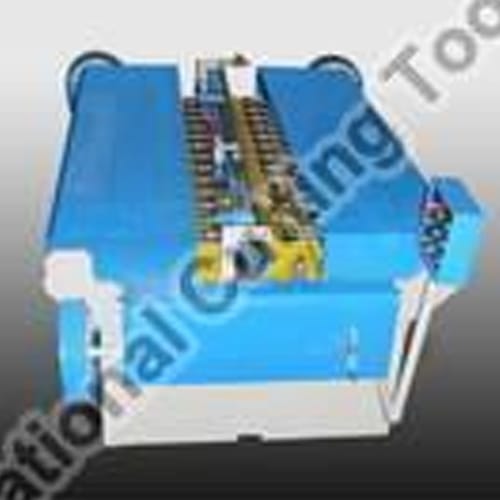

Manufactured at the National Cutting Tools works in Ludhiana, Punjab, the Manual Multi Spindle Drilling Machine is optimized for <p>The Manual Multi Spindle Drilling Machine is an economical, high-throughput machine tool designed for drilling multiple pin-holes through both walls of scaffolding prop pipes in a single manual feed stroke. In adjustable telescopic props, pin-holes must be drilled in precise alignment along the tube length at 100 mm or 125 mm pitch intervals so that height adjustment pins slide smoothly through both walls without binding.</p>.
<p>Equipped with an adjustable multi-spindle gearbox driven by an industrial electric motor, the machine powers two, three, or four drill spindles simultaneously. A manual rack-and-pinion feed lever with counterweight balance gives the operator smooth tactile control, allowing rapid penetration through standard 2.5 mm to 3.2 mm pipe walls with clean entry and exit holes.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Simultaneous Multi-Hole Drilling:</strong> Drills two to four holes through both pipe walls in a single operation, doubling productivity over single-spindle pillar drills.</li>
<li><strong>Adjustable Spindle Center Distance:</strong> Multi-spindle gear casing allows pitch adjustment to match standard 100 mm, 125 mm, or custom hole patterns.</li>
<li><strong>Hardened V-Block Clamping Jigs:</strong> Heavy manual toggle clamps seat 48.3 mm and 60.3 mm OD pipes accurately along the drill spindle centerline.</li>
<li><strong>Heavy Cast-Iron Column & Base:</strong> Close-grained graded casting damps drilling harmonics, prolonging HSS twist drill bit life and preventing drill wander.</li>
<li><strong>Built-in Coolant Delivery System:</strong> Electric coolant pump supplies continuous cutting fluid directly to each drill tip to keep tools cool and flush swarf.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Drilling adjustment pin holes in inner and outer scaffolding props</li>
<li>Perforating structural tubes for modular tent and shed framing</li>
<li>Hole drilling in pipe sleeves and coupling connectors</li>
<li>General multi-hole drilling in metal fabrication workshops</li>
</ul>
<p>Manufactured with precision-machined gears and ground spindles at our Ludhiana works. Tested on pipe samples for hole concentricity and center-to-center pitch accuracy before factory dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Specification | Details |
| Voltage | 380V, suitable for industrial environments. |
| Driven Type | Hydraulic |
| Warranty | 1 Year |
| Power | 10-12 kW |
| After-sales Service Provided | Spare Parts |
| Power range | 10–12 kW for handling heavy-duty drilling tasks. |
