Model: NCT-SPM-54
Comprehensive Machine Overview

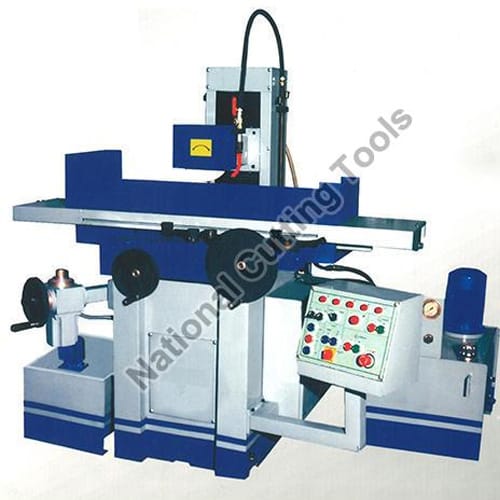

Designed to maintain strict dimensional tolerances under continuous multi-shift production, the Manual Surface Grinding Machine provides <p>The Manual Surface Grinding Machine by National Cutting Tools is a sensitive, precision machine tool designed for toolrooms, maintenance shops, and die-making workshops. For small workpiece batches, punch resharpening, and custom fixture fabrication, a manual surface grinder gives the toolmaker tactile control over table feed and infeed depth, enabling rapid setups and fine surface finishes without programming complex automated cycles.</p>.
<p>Featuring a hand-scraped cast iron bed, a balanced precision grinding spindle, and smooth rack-and-pinion table traverse, the machine moves effortlessly with zero operator fatigue. The vertical feed handwheel features large-diameter dials with micro-graduations of 0.002 mm, allowing precise stock removal on hardened tool steel, punches, and precision shims.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Smooth Hand-Scraped Guideways:</strong> Hand-scraped dovetail and flat ways coated with Turcite-B or precision ground for silky table movement.</li>
<li><strong>Cartridge Spindle with Angular Bearings:</strong> Balanced spindle assembly guarantees vibration-free rotation and superior surface finish.</li>
<li><strong>Micro-Graduated Vertical Handwheel:</strong> Sensitive vertical downfeed with 0.002 mm graduations enables exact depth control on close-tolerance parts.</li>
<li><strong>Permanent Magnetic Chuck Compatibility:</strong> Readily accepts standard permanent magnetic chucks for fast clamping of ferrous workpieces.</li>
<li><strong>Cast Iron Column & Base:</strong> Rigid monobloc casting prevents flexure during heavy grinding passes and dampens wheel harmonics.</li>
<li><strong>Adjustable Wheel Guard with Coolant Nozzle:</strong> Protects the operator while delivering direct coolant flow to the grinding interface.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Toolroom sharpening of press punches, forming dies, and cutting tools</li>
<li>Precision grinding of shims, gauge blocks, and spacer rings</li>
<li>Small batch surface finishing in general engineering workshops</li>
<li>Educational toolroom and technical apprentice training</li>
</ul>
<p>Manufactured at the National Cutting Tools facility in Ludhiana, Punjab. Every unit is inspected for table squareness, spindle runout, and surface finish repeatability before release.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Grinding Wheel Diameter | 7 Inch |
| Spindle Speed | 3600 rpm |
| Operation Type | Manual |
| Wheel Width | 1/2 Inch |
Manual Surface Grinding Machine Works QA & Export Packaging Protocol
✓ DIN 8606 Toolroom Geometric Accuracy Validation
- • Spindle True-Running Test: Radial and axial spindle run-out calibrated within 0.01 mm (0.0004") using Class-1 Dial Test Indicators (DTI).
- • Bed Slideway Parallelism: Longitudinal bedway flatness and carriage travel alignment verified across total bed length conforming to DIN toolroom standards.
- • Dynamic Balance & Vibration: Vibration frequency analysis on spindle, pulley, and headstock gear mesh under maximum rated motor RPM.
- • Machining Trial on Alloy Forging: Test cuts on solid alloy steel billets to verify surface finish (Ra < 1.6 μm) and cylindrical diameter consistency.
Heavy Machine Tool Export Seaworthy Packaging
- • Induction Bedway Slushing: Hardened guideways, cross slides, and spindle noses coated with premium heavy-duty anti-corrosion grease.
- • Saddle & Tailstock Clamping: Tailstock and saddle mechanically clamped and timber-blocked to prevent sliding shock during ocean motion.
- • Electrical VCI Emitters: Vapour-phase corrosion inhibitor emitters inserted into motor and switchgear enclosures.
- • Heavy Timber Skid Runners: Heavy-gauge wooden runner platform designed for forklift lifting and 4-corner container lashing.
