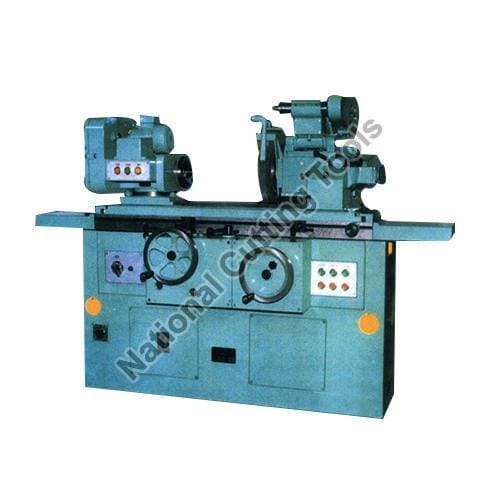

Universal Cylindrical Grinding Machine

Engineered for high-throughput production in demanding fabrication environments, the Universal Cylindrical Grinding Machine by National Cutting Tools is built for <p>The Universal Cylindrical Grinding Machine by National Cutting Tools is a versatile, high-precision grinding machine engineered to perform external (OD) grinding, internal (ID) grinding, face grinding, and taper grinding on a single platform. In precision engineering shops and toolrooms, purchasing separate internal and external grinders is expensive; our universal grinder incorporates a drop-down internal grinding spindle and a swiveling wheelhead to handle all cylindrical geometries.</p>.

<p>Built with a heavily ribbed cast-iron base, the machine features a swiveling workhead (up to 90 degrees), a swiveling table for taper grinding, and a dual-spindle wheelhead. The external spindle uses hydrodynamic bearings for vibration-free shaft grinding, while the high-speed internal spindle rotates up to 18,000 to 24,000 RPM for grinding deep precision bores and bearing sleeves with exceptional roundness.</p>

<h3>Key Features</h3>

<ul>

<li><strong>Dual External & Internal Grinding:</strong> Hinged internal grinding attachment swings down quickly into working position without removing the main wheel.</li>

<li><strong>Swiveling Workhead & Table:</strong> Both workhead and table swivel on graduated scales, enabling steep taper and face grinding operations.</li>

<li><strong>High-Speed Internal Spindle:</strong> Precision high-frequency spindle delivers 18,000+ RPM for smooth, chatter-free bore grinding.</li>

<li><strong>Hydrodynamic Main Spindle:</strong> External wheel spindle runs on precision hydrodynamic or Class P4 bearings for Ra 0.2 µm surface finish.</li>

<li><strong>Smooth Hydraulic Table Traverse:</strong> Infinitely variable table speeds with adjustable shock-free stroke reversal stops.</li>

<li><strong>Internal Coolant Delivery System:</strong> Separate coolant delivery paths for external flood cooling and deep-bore internal grinding.</li>

</ul>

<h3>Applications</h3>

<ul>

<li>Internal and external grinding of machine tool spindles, sleeves, and collars</li>

<li>Boring and OD grinding of hardened bushings, gears, and bearing rings</li>

<li>Grinding steep tapers on lathe centers, collets, and toolholders</li>

<li>Pump cylinder bore and piston rod finishing in hydraulic equipment plants</li>

</ul>

<p>Built under strict ISO 9001:2015 quality standards at our Ludhiana works. Certified trial grinding for both internal and external geometries is completed prior to factory dispatch.</p>
