Heavy Industrial SPM
Model: NCT-SPM-69
Comprehensive Machine Overview

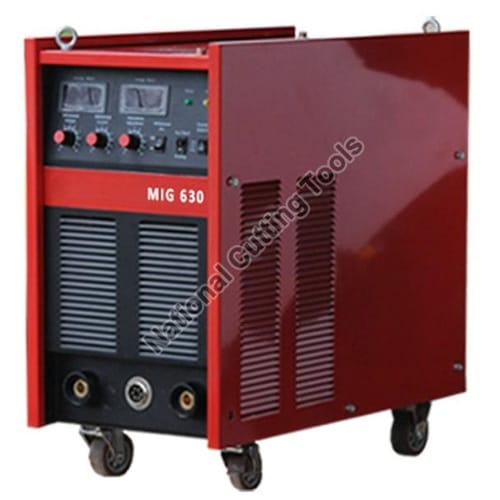

Designed to maintain strict dimensional tolerances under continuous multi-shift production, the MIG Welding Machine provides <p>The MIG Welding Machine by National Cutting Tools is a heavy-duty industrial gas metal arc welding (GMAW/FCAW) power source engineered for continuous, high-duty-cycle welding in structural fabrication shops, scaffolding plants, and machinery assembly yards. In high-output manufacturing lines, welding power sources must deliver smooth, stable arc characteristics with low spatter across continuous 3-shift duty cycles without thermal tripping or current fluctuation.</p>.
<p>Utilizing advanced IGBT inverter technology or heavy copper-wound transformer rectifiers, the machine delivers 350A, 500A, or 600A output at 60% to 100% duty cycle. The heavy-duty four-roll wire feeder delivers smooth, non-slip wire feed for 0.8 mm, 1.0 mm, 1.2 mm, and 1.6 mm solid and flux-cored welding wires, ensuring deep weld penetration, minimal post-weld cleanup, and high X-ray quality structural joints.</p>
<h3>Key Features</h3>
<ul>
<li><strong>High Duty Cycle (100% at 350A / 60% at 500A):</strong> Engineered for continuous industrial welding in high ambient temperatures without thermal shutdown.</li>
<li><strong>Four-Roll Geared Wire Feeder:</strong> Heavy-duty motor-driven wire feeder ensures steady, uninhibited wire feed over long torch cables up to 10 meters.</li>
<li><strong>Low-Spatter Arc Control:</strong> Optimized dynamic inductance control produces a smooth, quiet arc with minimal spatter loss, saving cleaning labor.</li>
<li><strong>Digital Voltage & Current Display:</strong> Precision digital meters allow exact setting and real-time monitoring of welding parameters.</li>
<li><strong>Thermal Overload & Grid Protection:</strong> Built-in safeguards protect inverter circuits against input voltage surges (380V–440V) and cooling air blockages.</li>
<li><strong>Heavy-Duty Wheel Carriage & Cylinder Rack:</strong> Robust steel chassis with heavy caster wheels and rear gas cylinder platform for shop-floor mobility.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>MIG welding scaffolding components: cuplock standards, ledgers, and prop plates</li>
<li>Structural steel fabrication, building frames, and heavy trusses</li>
<li>Automotive chassis, trailer, and commercial vehicle body welding</li>
<li>Pressure vessel, storage tank, and heavy machinery frame assembly</li>
</ul>
<p>Manufactured and load-tested at the National Cutting Tools electrical works in Ludhiana, Punjab. Burn-in tested under continuous load resistor banks prior to release for dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Driven Type | Hydraulic |
| Country of Origin | India |
| Application | Welding |
MIG Welding Machine Works QA & Export Packaging Protocol
✓ Circumferential Arc & Pneumatic Alignment Trials
- • Rotary Spindle Concentricity: Spindle chuck and pneumatic tailstock axial alignment verified within 0.08 mm to ensure uniform rotation without tube run-out.
- • Continuous Arc Cycle Testing: Minimum 25 continuous 360-degree weld runs executed on sample pipes to verify torch angle, arc stability, and bead penetration.
- • Macro-Etch Penetration Check: Cut-section metallurgical inspection of weld beads to confirm root penetration meeting BS 1139 and EN 12810 standards.
- • Run-Off Video Recording: Trial welding cycle on your specified tube diameter recorded in HD and shared for formal technical sign-off prior to dispatch.
Seaworthy Automated Station Packaging (ISPM-15)
- • Torch Carriage Bracing: Pneumatic slides, welding torch brackets, and rotary spindles locked with heavy-duty mechanical transport braces.
- • VCI Moisture Protection: Copper heat sinks, clamping jaws, and bare electrical contacts treated with volatile corrosion inhibitor (VCI) film.
- • Solid Timber Crating: Fumigated ISPM-15 certified solid pine wood crate with waterproof polyethylene outer envelope.
- • Container Lashing Points: Heavy structural skid base with internal corner tie-down brackets for ocean container transport.
International Shipping Destinations & India Supply Network
National Cutting Tools manufactures and configures the MIG Welding Machine for seamless integration into international fabrication lines and domestic scaffolding manufacturing plants. All machinery is customized for local electrical grids, certified for regional compliance, and dispatched with seaworthy protective packaging.
Primary International Export Destinations
All Export Hubs →Pan-India Fast Freight Dispatch (Ludhiana Works)
India Directory →Full-truckload (FTL) and part-load freight dispatch directly from our central manufacturing works at Focal Point, Ludhiana. Factory engineers provide on-site leveling, tool alignment, and operator training across all major industrial manufacturing clusters:
