Heavy Industrial SPM
Model: NCT-SPM-22
Comprehensive Machine Overview

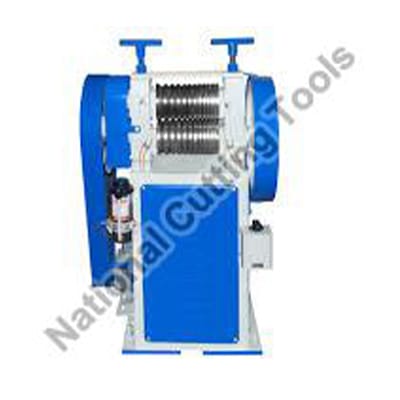

The Wire Pointing Machine is a dedicated industrial system engineered by National Cutting Tools for <p>The Wire Pointing Machine by National Cutting Tools is an essential auxiliary machine tool for wire drawing and fastener manufacturing plants. Before coiled wire rod or heavy bar stock can be drawn through a tungsten carbide or diamond drawing die, the leading end must be tapered down to a smaller diameter so it can pass through the die orifice and be gripped by the drawing carriage pulling tongs.</p>.
<p>Constructed with a heavy-duty cast frame, the machine features two or four precision-grooved alloy steel rolling rolls driven by an electric motor through a reduction gearbox. The operator introduces the wire end into progressively smaller roll grooves; the revolving eccentric rollers swage and reduce the wire end smoothly without cracking or metal shearing, producing a clean, concentric point in just a few passes.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Precision-Grooved Forged Rolls:</strong> Heat-treated alloy tool steel rollers feature multiple graduated grooves to point wire diameters from 3 mm to 25 mm.</li>
<li><strong>Heavy Cast-Iron Housing:</strong> Rigid cast frame absorbs swaging impact forces and maintains roll gap alignment over decades of mill service.</li>
<li><strong>Reversible Spindle Rotation:</strong> Foot pedal or lever control allows instant roll reversal, ensuring complete operator safety during point feeding.</li>
<li><strong>Adjustable Roll Center Distance:</strong> Micrometer screw adjustment allows fine calibration of roll pinch force for mild steel, copper, or high-carbon wire.</li>
<li><strong>Compact Footprint:</strong> Easily positioned adjacent to wire drawing bull blocks or multi-die continuous wire drawing lines.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Pointing wire ends prior to bull block and continuous wire drawing lines</li>
<li>Fastener manufacturing heading wire preparation</li>
<li>Electrode wire, nail wire, and spring wire processing mills</li>
<li>Bright bar and cold-heading rod end preparation</li>
</ul>
<p>Manufactured and tested at the National Cutting Tools plant in Ludhiana, Punjab. Calibrated on steel wire samples to ensure concentric pointing without surface splitting before dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Type | Machine |
| Material | Mild Steel, Stainless Steel, Aluminum |
| Wire Diameter Range | Varies By Model |
| Driven Type | Electric |
| Length | Up To 300 Mm |
| Surface Finish | Color Coated |
| Tooling Type | Adjustable Pointing Dies |
| Pointing Angle | 15° – 45° |
| Cutting Speed | 1 – 10 Meters Per Minute |
| Motor Power | 1.5 KW – 5.5 KW |
| Dimension | 1000 Mm X 600 Mm X 1500 Mm |
| Control System | PLC Control, Touch Screen |
| Frequency | 50 Hz/60 Hz |
| Pointing Method | Single, Or Double Pointing |
| Crack Resistance | Yes |
| Cooling Type | Air Cooled, Water Cooled |
| Noise Level | Less Than 85 DB |
| Production Capacity | 500 To 2000 Points Per Day |
| Usage | Industrial And Construction Wire |
| Country Of Origin | India |
Wire Pointing Machine Works QA & Export Packaging Protocol
✓ Specialized Tooling Stroke & Cycle Tolerance Audit
- • Tooling Alignment & Repeatability: Forming dies, clamping jaws, and cutting blades calibrated for zero deflection under high-volume batch cycling.
- • Continuous Duty Cycle Trials: Minimum 30 continuous operational cycles executed on customer-specified pipe or structural profile samples.
- • Electrical & Sensor Verification: Full burn-in testing of PLC limit switches, proximity sensors, and thermal overloads under rated motor loads.
- • Batch Processing Video: HD video recording of component processing and dimensional verification provided before crate crating.
Export-Grade Industrial Machinery Crating (ISPM-15)
- • Machined Surface Protection: All unpainted bare steel components, guides, and tooling surfaces treated with protective rust inhibitor.
- • Moving Parts Restraint: Clamping jaws, slide tables, and swinging arms braced with rigid transit fixtures.
- • Multi-Layer Moisture Barrier: High-strength polyethylene foil wrap protects against maritime humidity and salt air.
- • Phytosanitary Timber Crating: Fully enclosed solid wooden crating bearing ISPM-15 certification for customs clearance.
