Heavy Industrial SPM
Model: NCT-SPM-63
Comprehensive Machine Overview

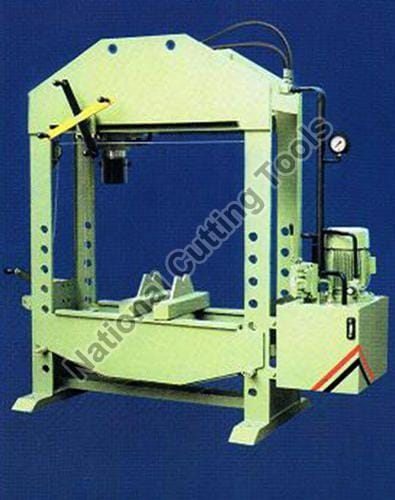

Manufactured at the National Cutting Tools works in Ludhiana, Punjab, the Electric Hydraulic Press is optimized for <p>The Electric Hydraulic Press by National Cutting Tools is a versatile production press engineered for high-efficiency pressing, punching, coin pressing, and structural component assembly. Combining the quiet efficiency of electric power units with the raw thrust of hydraulic hydraulics, this machine provides smooth, controllable ram force that can be maintained at full pressure for programmed dwell cycles.</p>.
<p>Built with a rigid fabricated steel frame in four-pillar or H-frame configurations, the machine houses a compact electric-hydraulic manifold system with high-pressure valves and oil reservoir. The ergonomic control station features dual-hand push-button controls for operator safety, a tonnage regulator, and an automatic stroke limit switch that reverses the ram upon reaching the desired depth or pressure setting.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Integrated Electric Hydraulic Unit:</strong> Compact, self-contained power pack with submerged pump ensures quiet operation and low thermal buildup.</li>
<li><strong>Dual-Hand Safety Anti-Tie-Down:</strong> Requires both hands on the push-buttons to initiate pressing stroke, guaranteeing operator hands are clear.</li>
<li><strong>Adjustable Pressure & Tonnage Regulator:</strong> Infinitely variable pressure adjustment to match delicate assembly or heavy forming operations.</li>
<li><strong>Rapid Ram Advance & Controlled Pressing:</strong> Fast approach speed transitions to regulated pressing speed just before workpiece contact.</li>
<li><strong>Micro-Adjustable Stroke Limit Switches:</strong> Sets exact upper and lower ram travel limits to prevent over-pressing and minimize cycle time.</li>
<li><strong>Solid Steel Platen & Base:</strong> Precision-milled T-slotted bed allows easy mounting of customer dies, fixtures, and punching tooling.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Pressing scaffolding connector fittings and swaged pipe collars</li>
<li>Sheet metal stamping, blanking, and shallow deep drawing</li>
<li>Assembling interference-fit automotive and mechanical parts</li>
<li>Rubber molding and composite material compression molding</li>
</ul>
<p>Built under strict ISO 9001:2015 quality standards at our Ludhiana works. Pressure-certified with continuous multi-cycle testing prior to factory dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Capacity | 5-10 Ton, 10-20 Ton |
| Power Source | Electric |
| Control Type | CNC |
| Material | Cast Steel |
| Packaging Type | Packed |
| Country of Origin | Made in India |
Electric Hydraulic Press Works QA & Export Packaging Protocol
✓ Hydraulic Ram Tonnage & Bed Flatness Verification
- • Full Tonnage 60-Minute Pressure Hold: Hydraulic cylinder pressurized to 100% rated tonnage and locked for 60 minutes with zero pressure drop on gauge.
- • Platen Parallelism & Deflection Check: Bed-to-ram parallelism calibrated within 0.05 mm under peak central and off-center forming loads.
- • Decompression & Cycle Speed Check: Rapid approach, controlled pressing, and smooth decompression valve timing calibrated to prevent hydraulic shock.
- • Emergency Stop & Safety Circuit Audit: Dual-hand anti-tie-down safety console and light curtain interlocks verified under continuous cycling.
Hydraulic Press Heavy-Duty Export Transit Preparation
- • Main Ram Mechanical Timber Blocking: Solid timber hardwood blocks positioned between ram platen and bed to lock hydraulic cylinder in place.
- • Piston Rod Protective Greasing: Chrome-plated hydraulic piston rod covered in heavy grease and wrapped in heavy-duty poly barrier.
- • Hydraulic Power Pack Sealing: Oil tank breather replaced with hermetic transport plug; directional valves protected against dust.
- • Container Floor Bolting Points: Base frame pre-drilled with heavy-gauge container floor anchoring holes.
