Heavy Industrial SPM
Model: NCT-SPM-64
Comprehensive Machine Overview

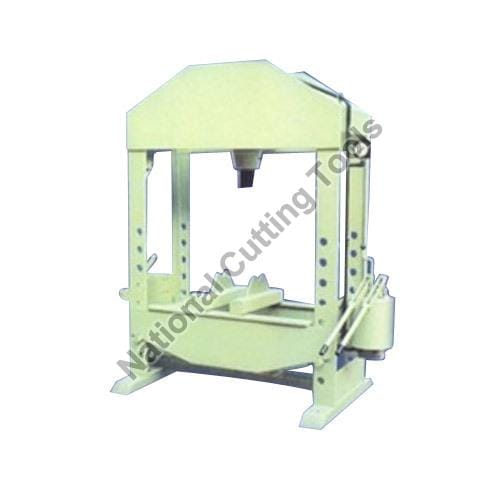

Designed to maintain strict dimensional tolerances under continuous multi-shift production, the Hand Operated Hydraulic Press provides <p>The Hand Operated Hydraulic Press by National Cutting Tools is a dependable, manually powered shop press designed for general maintenance, bearing removal, bushing installation, and light metal forming. In remote project sites, field workshops, and toolrooms where electrical power is absent or intermittent, a hand-operated hydraulic press provides up to 10 to 50 tons of pressing force through an efficient manual hydraulic pump.</p>.
<p>Constructed with a heavy-duty welded H-frame using structural channel steel, the press features an adjustable work table supported on hardened steel pins. The two-speed manual hand pump provides rapid ram approach on low pressure and easy high-pressure pumping to reach full tonnage with minimal operator physical effort.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Dual-Speed Manual Hand Pump:</strong> Fast-stroke low-pressure mode advances ram quickly; high-pressure mode delivers rated tonnage easily.</li>
<li><strong>Heavy Welded Steel H-Frame:</strong> Rigid channel construction resists frame spread and maintains parallelism under full rated load.</li>
<li><strong>Winch-Adjustable Bed Height:</strong> Hand-crank cable winch enables one operator to adjust bed height easily to fit varied component sizes.</li>
<li><strong>Large Analog Pressure Gauge:</strong> High-visibility dial gauge indicates pressing force in metric tons for accurate force monitoring.</li>
<li><strong>Spring-Assisted Ram Return:</strong> Heavy external return springs retract the ram smoothly when the manual release valve is opened.</li>
<li><strong>Complete Standard Tooling:</strong> Supplied with a pair of heavy V-blocks and flat adapter plates for shaft straightening and bearing pressing.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Field workshop and mobile service truck maintenance operations</li>
<li>Fitting and removing bearings, gears, and universal joints</li>
<li>Straightening bent shafts, tie rods, and scaffolding pipes</li>
<li>Light metal bending and manual assembly operations</li>
</ul>
<p>Manufactured at the National Cutting Tools plant in Ludhiana, Punjab. Every unit is proof-tested at 125% of rated capacity to guarantee hydraulic seal integrity before packing.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Operation Type | Hand Operated |
| Max Force / Load | 5 – 20 Ton |
| Body Material | Heavy Duty Steel |
| Application | Pressing, Straightening, Bending |
| Mounting Type | Floor Mounted |
| Corrosion Resistance | Yes |
| Country of Origin | India |
Hand Operated Hydraulic Press Works QA & Export Packaging Protocol
✓ Hydraulic Ram Tonnage & Bed Flatness Verification
- • Full Tonnage 60-Minute Pressure Hold: Hydraulic cylinder pressurized to 100% rated tonnage and locked for 60 minutes with zero pressure drop on gauge.
- • Platen Parallelism & Deflection Check: Bed-to-ram parallelism calibrated within 0.05 mm under peak central and off-center forming loads.
- • Decompression & Cycle Speed Check: Rapid approach, controlled pressing, and smooth decompression valve timing calibrated to prevent hydraulic shock.
- • Emergency Stop & Safety Circuit Audit: Dual-hand anti-tie-down safety console and light curtain interlocks verified under continuous cycling.
Hydraulic Press Heavy-Duty Export Transit Preparation
- • Main Ram Mechanical Timber Blocking: Solid timber hardwood blocks positioned between ram platen and bed to lock hydraulic cylinder in place.
- • Piston Rod Protective Greasing: Chrome-plated hydraulic piston rod covered in heavy grease and wrapped in heavy-duty poly barrier.
- • Hydraulic Power Pack Sealing: Oil tank breather replaced with hermetic transport plug; directional valves protected against dust.
- • Container Floor Bolting Points: Base frame pre-drilled with heavy-gauge container floor anchoring holes.
International Shipping Destinations & India Supply Network
National Cutting Tools manufactures and configures the Hand Operated Hydraulic Press for seamless integration into international fabrication lines and domestic scaffolding manufacturing plants. All machinery is customized for local electrical grids, certified for regional compliance, and dispatched with seaworthy protective packaging.
Primary International Export Destinations
All Export Hubs →Pan-India Fast Freight Dispatch (Ludhiana Works)
India Directory →Full-truckload (FTL) and part-load freight dispatch directly from our central manufacturing works at Focal Point, Ludhiana. Factory engineers provide on-site leveling, tool alignment, and operator training across all major industrial manufacturing clusters:
