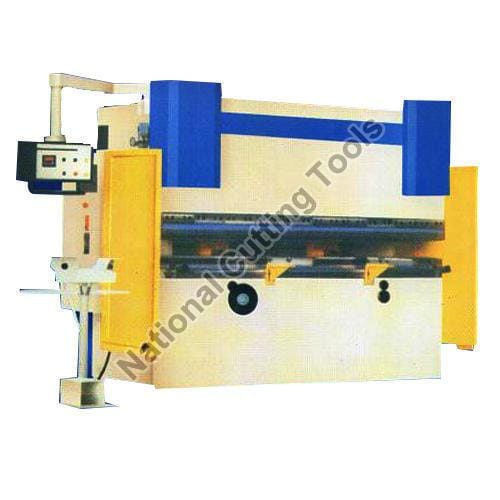

Engineered for high-throughput production in demanding fabrication environments, the Hydraulic Brake Press by National Cutting Tools is built for <p>The Hydraulic Brake Press (Hydraulic Press Brake) by National Cutting Tools is an industrial metal forming machine engineered for accurate, repeatable bending of sheet metal and heavy steel plates. In scaffolding component manufacturing, enclosure fabrication, and structural steel framing, producing straight bends with uniform angles along the full bed length requires rigid frame construction and synchronized hydraulic ram descent.</p>.
<p>Featuring a heavy-duty stress-relieved steel plate frame, the machine uses two synchronized hydraulic cylinders mounted on the side housings to drive the upper ram. A mechanical torsion bar or electro-hydraulic proportional valves maintain ram parallelism throughout the stroke. The multi-V bottom die and hardened upper punch form sharp, consistent bends on mild steel, galvanized sheet, and stainless steel plates across bed lengths from 1500 mm up to 4000 mm.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Synchronized Dual Hydraulic Cylinders:</strong> Balanced hydraulic drive ensures parallel ram movement across the full length of the bending bed.</li>
<li><strong>Rigid Torsion Bar Synchronization:</strong> Heavy mechanical torsion shaft links cylinder movements to eliminate angular deflection on offset bends.</li>
<li><strong>Motorized Back Gauge with Digital Counter:</strong> Rapid positioning back gauge with fine manual handwheel adjustment for accurate bend flanges.</li>
<li><strong>Multi-V Die & Segmented Punch Tooling:</strong> Heat-treated alloy steel tooling accommodates multiple plate thicknesses and bend radii.</li>
<li><strong>Mechanical Depth Stop Nuts:</strong> Motorized internal cylinder nuts provide positive mechanical stops for micron-level bend angle repeatability.</li>
<li><strong>Foot Pedal Control with Inch Mode:</strong> Allows the operator to position sheet metal accurately before executing full bending tonnage.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Bending scaffolding U-head channels, brackets, and structural clips</li>
<li>Sheet metal enclosure, cabinet, and electrical panel fabrication</li>
<li>Forming structural channels, angles, and drip trays</li>
<li>Commercial plate bending and metal roofing component manufacturing</li>
</ul>
<p>Manufactured under strict ISO 9001:2015 standards at our Ludhiana works. Tested for bending angular accuracy (within ±0.5 degrees) and tonnage proof before factory dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Max Force or Load | 30 – 60 Ton |
| Max Sheet Width | 3 Meter |
| Control Type | CNC |
| Cutting Load | 60 – 90 Ton |
| Table Size | 125 x 1400 mm |
| Clear Pass | 1250 mm |
| Open Height | 250 mm |
| Throat Depth | 100 mm |
Hydraulic Brake Press Works QA & Export Packaging Protocol
✓ Hydraulic Ram Tonnage & Bed Flatness Verification
- • Full Tonnage 60-Minute Pressure Hold: Hydraulic cylinder pressurized to 100% rated tonnage and locked for 60 minutes with zero pressure drop on gauge.
- • Platen Parallelism & Deflection Check: Bed-to-ram parallelism calibrated within 0.05 mm under peak central and off-center forming loads.
- • Decompression & Cycle Speed Check: Rapid approach, controlled pressing, and smooth decompression valve timing calibrated to prevent hydraulic shock.
- • Emergency Stop & Safety Circuit Audit: Dual-hand anti-tie-down safety console and light curtain interlocks verified under continuous cycling.
Hydraulic Press Heavy-Duty Export Transit Preparation
- • Main Ram Mechanical Timber Blocking: Solid timber hardwood blocks positioned between ram platen and bed to lock hydraulic cylinder in place.
- • Piston Rod Protective Greasing: Chrome-plated hydraulic piston rod covered in heavy grease and wrapped in heavy-duty poly barrier.
- • Hydraulic Power Pack Sealing: Oil tank breather replaced with hermetic transport plug; directional valves protected against dust.
- • Container Floor Bolting Points: Base frame pre-drilled with heavy-gauge container floor anchoring holes.
International Shipping Destinations & India Supply Network
National Cutting Tools manufactures and configures the Hydraulic Brake Press for seamless integration into international fabrication lines and domestic scaffolding manufacturing plants. All machinery is customized for local electrical grids, certified for regional compliance, and dispatched with seaworthy protective packaging.
Primary International Export Destinations
All Export Hubs →Pan-India Fast Freight Dispatch (Ludhiana Works)
India Directory →Full-truckload (FTL) and part-load freight dispatch directly from our central manufacturing works at Focal Point, Ludhiana. Factory engineers provide on-site leveling, tool alignment, and operator training across all major industrial manufacturing clusters:
