Heavy Industrial SPM
Model: NCT-SPM-26
Comprehensive Machine Overview

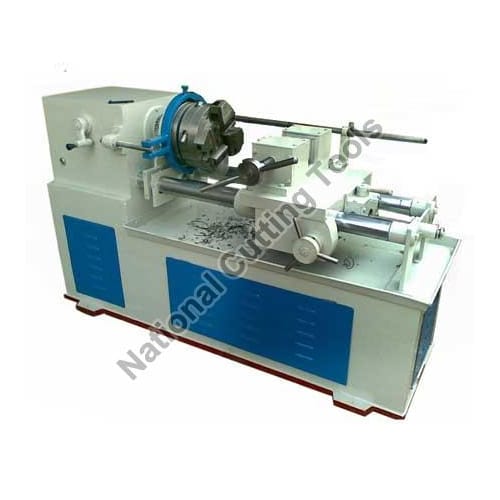

Built on a heavy structural frame to eliminate vibration harmonics and maintain precision, the Bar Threading Machine manufactured by National Cutting Tools delivers <p>The Bar Threading Machine is engineered for continuous, accurate thread cutting on solid round metal bars, tie rods, and shafts up to 65 mm diameter. Fabricators working in pre-engineered buildings, formwork shoring, and heavy structural engineering require long threaded sections with tight pitch accuracy and clean thread roots that engage nuts smoothly under full tensile loading.</p>.
<p>Constructed on a heavy monobloc bed, the machine incorporates a multi-speed headstock with hardened gears, a hollow spindle for through-bar passage, and a robust carriage guided on hand-scraped prismatic ways. The four-chaser tangential die head delivers clean, tear-free threads on mild steel, medium carbon EN-8, and alloy steels, making it a reliable asset for structural steel and fastener plants.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Through-Spindle Bar Clearance:</strong> Hollow headstock spindle allows long continuous bars to pass through the machine for end threading without restriction.</li>
<li><strong>Precision Lead Screw Synchronisation:</strong> Lead screw ensures exact pitch matching for specialized pitch standards, eliminating lead error over long thread lengths.</li>
<li><strong>Tangential Chaser Tooling:</strong> High-speed steel chasers provide clean cutting action and can be resharpened repeatedly along their full usable length.</li>
<li><strong>Heavy V-Jaw Bar Clamping:</strong> Mechanical or pneumatic clamping vise holds solid bars concentric to the cutting axis under high cutting torque.</li>
<li><strong>Automatic Length Trip Bar:</strong> Disengages the die head automatically at the desired thread length, preventing operator overrun errors.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Structural tie rod and sag rod threading for PEB steel buildings</li>
<li>Formwork tie rod and anchor bar fabrication</li>
<li>Shoring bar and tension rod production for bridge and civil works</li>
<li>Job-shop bar threading for hydraulic cylinder and pump shafts</li>
</ul>
<p>Manufactured under strict ISO 9001:2015 quality standards at our Ludhiana works. Verified on solid steel bar samples with precision thread pitch gauges prior to packaging and dispatch.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Type Of Machine | Threading Machine |
| Material | Steel, Aluminium Alloys |
| Power Source | Electric |
| Thread Type | Internal, External, Tapered |
| Chuck Type | Self-centering Chuck |
| Spindle Speed | Variable |
| Control System | Manual Or CNC Control Options |
| Finishing | Painted |
| Application | Machine, Fabrication Shops, Construction Projects |
| Accuracy | Can Achieve High Precision Threading |
| Frequency | 50 Hz |
| Safety Features | May Include Guards, Shields, And Emergency Stop Buttons |
| Accessories | Includes Tool Kit, Spare Parts, Threading Dies |
| Advantages | Easy To Operated, Non Breakable, Sturdiness, High Speed, Durable |
| Country Of Origin | India |
Bar Threading Machine Works QA & Export Packaging Protocol
✓ Thread Geometry & Pitch Gauge Verification Protocol
- • Thread Pitch & Gauge Inspection: Sample threads cut or rolled on bar/pipe stock verified with calibrated Go / No-Go thread ring and plug gauges (IS 554 / ISO 7 / IS 16172).
- • Chaser / Roll Die Parallelism: Die head trip mechanism and roll die spacing aligned within 0.02 mm under full cutting and forming torque.
- • All-Geared Headstock Burn-In: 48-hour continuous trial of all spindle speeds and coolant circulation under loaded cutting conditions to ensure thermal stability.
- • Thread Sample Sign-Off: Physical threaded test samples preserved and HD video of threading cycle sent for buyer approval before packing.
Precision Threading Machine Transit Protection
- • Die & Lead Screw Wax Coating: Chasers, thread rolls, vice jaws, and lead screws coated with heavy-viscosity protective rust-preventive petroleum wax.
- • Carriage Mechanical Locks: Workpiece carriage and rack gear secured to prevent movement and shock during sea transit.
- • Cabinet Desiccant Packs: Hermetically sealed silica gel canisters placed inside control enclosures to prevent condensation.
- • ISPM-15 Heat-Treated Crating: Heavy wooden box packaging compliant with international maritime phytosanitary export standards.
