Threading Machines for Malaysia
National Cutting Tools builds pipe and bolt threading machines covering BSP and NPT taper threads and parallel bolt threads at its works in Ludhiana, Punjab, and ships them to Kuala Lumpur, Klang, Shah Alam, Johor Bahru, Pasir Gudang and Penang through Port Klang. The machines produce threaded pipe ends and bolt blanks from 1/2 inch to 6 inch nominal bore, and are built to the geometry and tolerances called up by ISO 7/1 for BSPT, ASME B1.20.1 for NPT and ISO 68-1 for the metric profile. Every consignment for Malaysia is supplied with tropicalised motor insulation rated for high ambient humidity, which attacks electrical windings long before it affects the mechanics.
Where the demand comes from
Fire-fighting, chilled-water and process pipe threading for Malaysian construction and the Johor data-centre programme is steady volume. Machines on this rotation carry tropicalised motors, because a standard winding fails early at sustained high humidity.
Delivered to: Kuala Lumpur, Klang, Shah Alam, Johor Bahru, Pasir Gudang, Penang, Ipoh, Kuching
Threading Machines available for Malaysia
Rebar Threading Machine
- Machine Type: Rebar Threading
- Material: Steel, Iron
- Cooling System: Air Or Water Cooled
Hydraulic Thread Cutting Machine
- Type: Cutting Machine
- Thread Cutting Capacity: Up To M100
- Thread Type: Metric, BSPT, Or Custom Threads
Thread Cutting Machine
- Specification: Details
- Machine Type: Thread Cutting Machine
- Material Capacity: Steel, Stainless Steel, TMT Bars
Automatic Pipe Threading Machine
- Specification: Details
- Automatic Grade: Automatic
- Power: 15 H.P., 1440 RPM
Automatic Thread Cutting Machine
- Automatic Grade: Automatic
- Power: 7.5 H.P., 1440 RPM
- Warranty: 1 Year

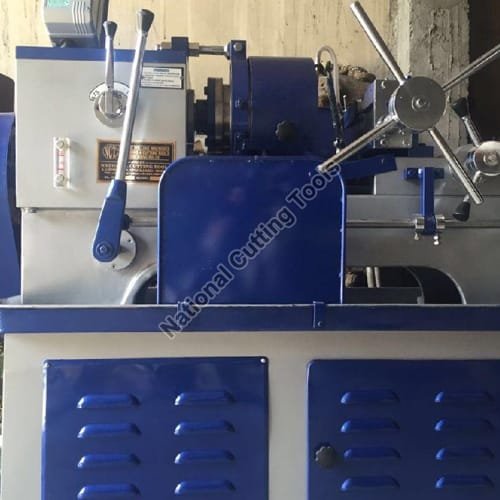

Bolt Cum Pipe Threading Machines
Specifications

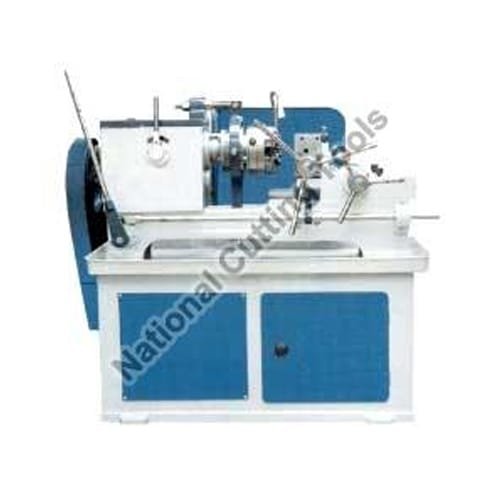

Bolt Threading Machine
- Type: Machine
- Material: Stainless Steel, Or Aluminum
- Quality: Best Quality

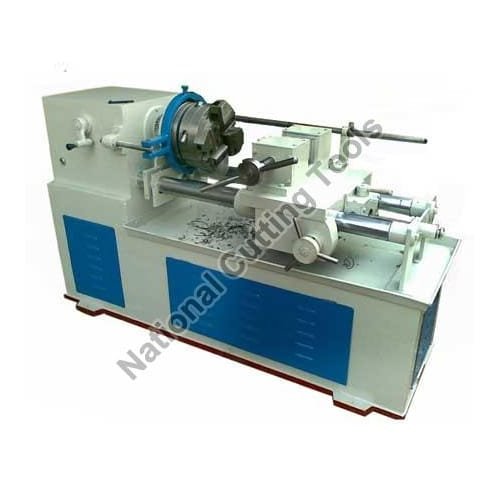

Bar Threading Machine
- Type Of Machine: Threading Machine
- Material: Steel, Aluminium Alloys
- Power Source: Electric

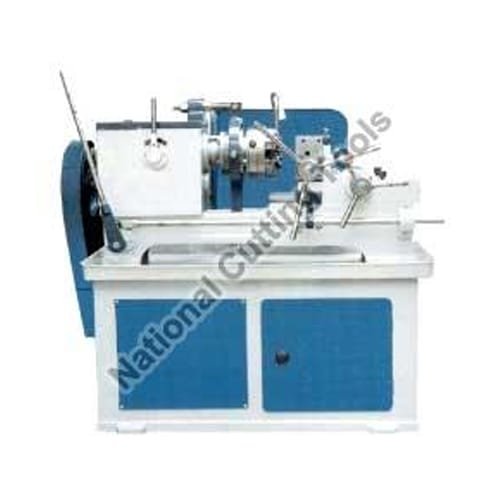

Rod Threading Machine
- Type: Machine
- Material: Mild Steel, Stainless Steel
- Thread Type: Metric, BSW, NPT, Or Custom Threads

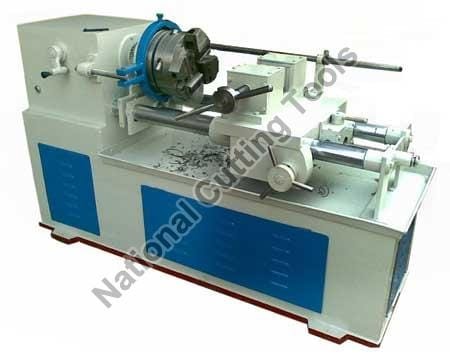

Steel Bar Threading Machine
- Range: 32-54, 54-85
- Weight (KG): 550, 990
Pipe Threading Machine
- Specification: Details
- Automatic Grade: Automatic
- Power: 15 H.P., 1440 RPM

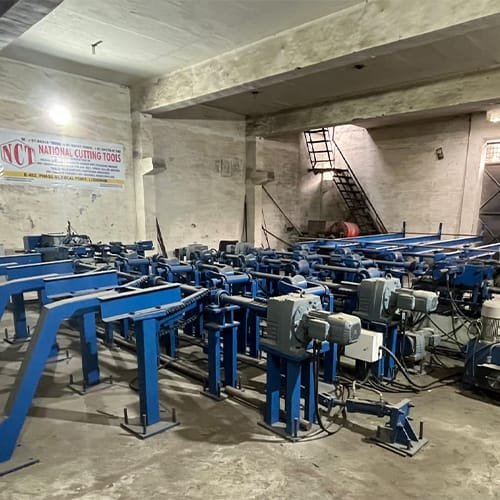

Fully Automatic Pipe Threading Machine
- Model: FA-PTM-100
- Motor Power: 2 HP – 5 HP
- Threading Range: 1/2 inch to 4 inch

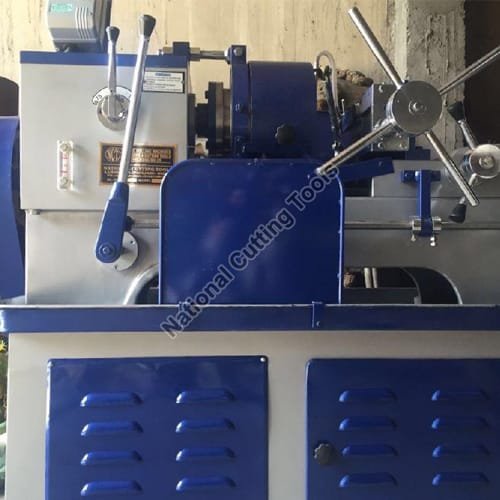

Bed Type Bolt Cum Pipe Threading Machine
- Model: BT-500
- Capacity (Bolt/Thread Diameter): 12 mm – 50 mm
- Pipe Threading Capacity: 1/2″ – 2″

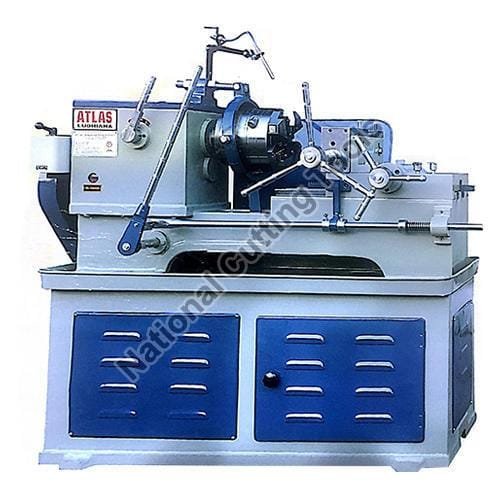

Electric Bolt Cum Pipe Threading Machine
- Feature: Specification
- Power Source: Electric (AC Motor)
- Motor Power: 750W / 1 HP (varies by model)
Pillar Type Bolt Cum Pipe Threading Machine
- Feature: Specification
- Type: Pillar-mounted, Heavy-duty Industrial
- Power Source: Electric (AC Motor)

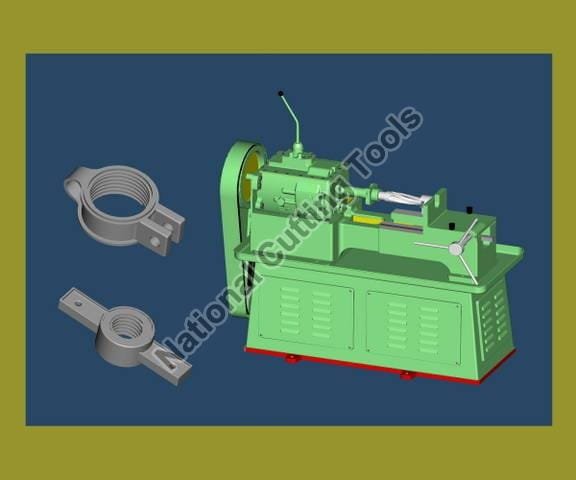

Internal Pipe Threading Machine
- Operation: Pneumatic
- Pressure Required: 8 to 10 Bars
- Thread Size: 4 T.P.I.

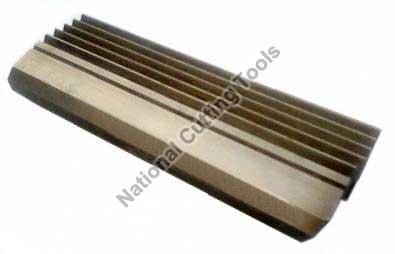

Tangential Chaser
- Type: Tangential
- Material: Metal (High-Speed Steel)
- Color: Golden
HSS Threading Tap
- Material: Metal
- Color: Grey
- Shape: Round

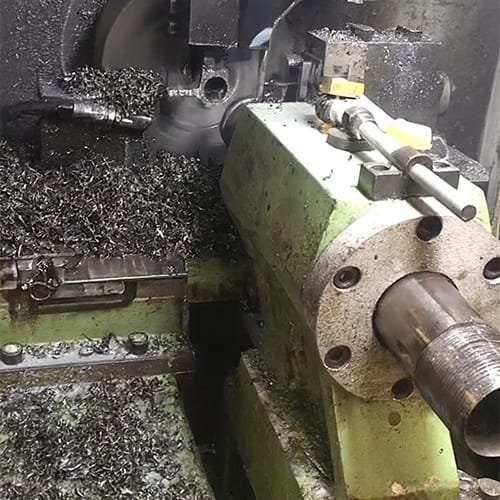

Automatic Nipple Threading & Cutting Machine
- Machine Type: Automatic Nipple Threading & Cutting Machine
- Operation: Threading + Cutting
- Material Compatibility: GI, MS, SS Pipes
Electrical build
Supply: 415V, 3-phase, 50 Hz. Supplied with tropicalised motor insulation rated for high ambient humidity, which attacks electrical windings long before it affects the mechanics.
Shipping & crating
A single-head threader moves as one crate; a multi-spindle line is shipped with the die heads removed and re-fitted during commissioning to protect the chasers. Port Klang and Penang Port are served from Nhava Sheva and Mundra in 8 to 12 days, discharging at Port Klang (MYPKG). Machines are crated to ISPM-15 heat-treated standard with desiccant and a vapour barrier, and the packing list, commercial invoice and chamber-attested Certificate of Origin travel with the consignment.
Standards & import documentation
Machines in this class normally clear customs under HS heading 8459.70. Taper thread acceptance is checked with a ring gauge at the correct standoff, and the die head is re-set for the buyer's pipe wall thickness. Import clearance in Malaysia runs on SIRIM QAS inspection where the buyer specifies it, Energy Commission (Suruhanjaya Tenaga) electrical requirements, and AIFTA Form AI where the consignment qualifies for preferential duty. The works issues the manufacturer test certificate, electrical schematic and material test report with every machine, so the buyer's submittal pack is complete on arrival rather than assembled afterwards.
| Conformity | SIRIM QAS inspection where the buyer specifies it, and Energy Commission (Suruhanjaya Tenaga) electrical requirements; AIFTA Form AI issued where the consignment qualifies for preferential duty. |
| Tariff headings | Typical headings: 8515.31 (arc/MIG welding machines), 8459.70 (threading and tapping machines), 8462.29 (bending and forming presses), 8479.89 (special purpose machines). |
| Port (UN/LOCODE) | Port Klang (MYPKG) |
| Incoterms offered | EXW Ludhiana, FOB Mundra / Nhava Sheva, CIF Port Klang or CIF Penang |
Spares & after-sales support
Wear parts for this class are die head chaser sets, cutting oil pumps, filters and the pipe chuck jaws. The monsoon and constant humidity are the design constraint here, not heat. Tropicalised motor insulation is specified for the Malaysia rotation, and the ASEAN-India FTA can remove duty on qualifying headings. Spare-part orders are quoted against the machine serial number.
