Heavy Industrial SPM
Model: NCT-SPM-70
Comprehensive Machine Overview

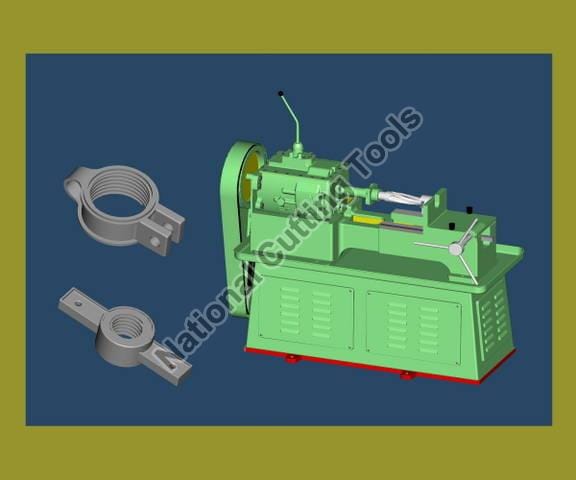

Engineered for high-throughput production in demanding fabrication environments, the Internal Pipe Threading Machine by National Cutting Tools is built for <p>The Internal Pipe Threading Machine by National Cutting Tools is a specialized machine tool engineered for cutting precision internal (female) threads inside pipe ends, coupling sleeves, pipe flanges, and tubular fittings. While external pipe threading is common, machining internal threads on heavy pipe spools and forged sleeves requires rigid tap holding, precise lead control, and rapid spindle reversal to retract the tap cleanly without stripping the newly cut threads.</p>.
<p>Built on a heavy cast iron bed, the machine features an all-geared headstock with instant forward-reverse electrical switching, an adjustable work-holding vise, and a precision lead screw or manual quill feed. The spindle accommodates heavy-duty machine taps and collapsing tap heads for pipe sizes from 1/2" up to 3" nominal bore (BSP, NPT, and metric standards), delivering concentric, leak-tight internal threads for critical industrial connections.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Instant Spindle Forward / Reverse:</strong> Electrical or mechanical clutch enables immediate reverse rotation at the exact depth stop to withdraw the tap safely.</li>
<li><strong>Collapsing Tap Compatibility:</strong> Supports modern collapsing tap heads that retract cutters radially inward at depth, allowing fast withdrawal without reversing.</li>
<li><strong>Heavy All-Geared Headstock:</strong> Low spindle RPMs (15 to 45 RPM) provide immense torque required to drive large-diameter internal taps through tough steel.</li>
<li><strong>Universal Self-Centering Pipe Clamp:</strong> Heavy vise jaws grip pipe blanks concentric to the tapping spindle, ensuring true axial thread alignment.</li>
<li><strong>Adjustable Depth Stop Trip:</strong> Precision micro-switch stops forward tap travel at exact programmed depth, preventing bottoming-out tap breakage.</li>
<li><strong>High-Pressure Internal Coolant Flushing:</strong> Directs coolant deep into the pipe bore to flush chips backward and lubricate tap cutting edges.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Threading internal couplings and socket connectors for pipeline fittings</li>
<li>Internal thread cutting on scaffolding prop adjustment sleeves and collar nuts</li>
<li>Machining female threads in structural flanges and pipe end manifolds</li>
<li>Oil, gas, and water piping component manufacturing</li>
</ul>
<p>Engineered and manufactured at our Ludhiana works. Factory tested on pipe sleeve samples with thread plug gauges and torque checks before dispatch to clients across India and export markets.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Operation | Pneumatic |
| Pressure Required | 8 to 10 Bars |
| Thread Size | 4 T.P.I. |
| Tap Material | D2 |
| Control | PLC with Touch Screen |
| Production | 1 Piece/Minute |
| Dimensions | 8(L) x 4(W) x 5(H) Feet Approx. |
| Weight | 1800 Kgs (Approx.) |
| Type | Internal Pipe Threading Machine |
| Pipe Size Range | 15mm – 200mm |
| Material | Stainless Steel / Alloy Steel |
| Application | Industrial Internal Threading |
| Country of Origin | India |
Internal Pipe Threading Machine Works QA & Export Packaging Protocol
✓ Thread Geometry & Pitch Gauge Verification Protocol
- • Thread Pitch & Gauge Inspection: Sample threads cut or rolled on bar/pipe stock verified with calibrated Go / No-Go thread ring and plug gauges (IS 554 / ISO 7 / IS 16172).
- • Chaser / Roll Die Parallelism: Die head trip mechanism and roll die spacing aligned within 0.02 mm under full cutting and forming torque.
- • All-Geared Headstock Burn-In: 48-hour continuous trial of all spindle speeds and coolant circulation under loaded cutting conditions to ensure thermal stability.
- • Thread Sample Sign-Off: Physical threaded test samples preserved and HD video of threading cycle sent for buyer approval before packing.
Precision Threading Machine Transit Protection
- • Die & Lead Screw Wax Coating: Chasers, thread rolls, vice jaws, and lead screws coated with heavy-viscosity protective rust-preventive petroleum wax.
- • Carriage Mechanical Locks: Workpiece carriage and rack gear secured to prevent movement and shock during sea transit.
- • Cabinet Desiccant Packs: Hermetically sealed silica gel canisters placed inside control enclosures to prevent condensation.
- • ISPM-15 Heat-Treated Crating: Heavy wooden box packaging compliant with international maritime phytosanitary export standards.
International Shipping Destinations & India Supply Network
National Cutting Tools manufactures and configures the Internal Pipe Threading Machine for seamless integration into international fabrication lines and domestic scaffolding manufacturing plants. All machinery is customized for local electrical grids, certified for regional compliance, and dispatched with seaworthy protective packaging.
Primary International Export Destinations
All Export Hubs →Pan-India Fast Freight Dispatch (Ludhiana Works)
India Directory →Full-truckload (FTL) and part-load freight dispatch directly from our central manufacturing works at Focal Point, Ludhiana. Factory engineers provide on-site leveling, tool alignment, and operator training across all major industrial manufacturing clusters:
