Heavy Industrial SPM
Model: NCT-SPM-29
Comprehensive Machine Overview

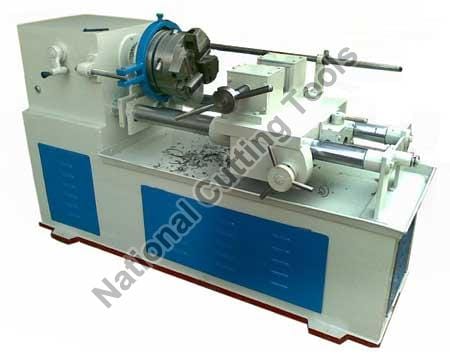

Designed to maintain strict dimensional tolerances under continuous multi-shift production, the Steel Bar Threading Machine provides <p>The Steel Bar Threading Machine by National Cutting Tools is a heavy-duty production machine tool designed for cutting external threads on solid steel bars, high-tensile structural bolts, and anchor shafts. Threading tough carbon steel grades (EN-8, EN-9, EN-19) requires massive headstock torque, vibration damping, and rigid tool holding to prevent tool chatter and premature chaser chipping.</p>.
<p>Built with a heavy stress-relieved cast bed and an all-geared multi-speed transmission, this machine delivers the low-RPM, high-torque output required to machine coarse pitch metric and imperial threads up to M65 / 2.1/2" diameter in a single pass. The self-opening tangential die head releases automatically at the programmed stop, ensuring rapid cycle times and consistent thread dimensions over continuous industrial shifts.</p>
<h3>Key Features</h3>
<ul>
<li><strong>Heavy All-Geared Headstock:</strong> Hardened alloy steel gears running in a sealed oil bath provide low spindle speeds (30, 60, 90 RPM) with immense cutting torque.</li>
<li><strong>Tangential Chaser Die System:</strong> Four-chaser configuration cuts on the end face, allowing multiple regrinds and exceptional consumable economy.</li>
<li><strong>Heavy-Duty Self-Centering Vise:</strong> Dual-screw vise with hardened serrated jaws holds high-tensile bar stock dead on center under heavy cutting loads.</li>
<li><strong>Positive Lead Screw Engagement:</strong> Eliminates lead error and pitch distortion on long threaded lengths and coarse pitches.</li>
<li><strong>Automatic Trip Mechanism:</strong> Opens the die head instantaneously at the length stop, preventing thread damage during carriage reverse.</li>
<li><strong>High-Volume Coolant Flushing:</strong> Gear-driven coolant pump washes away heavy swarf and keeps cutting temperatures stable.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Heavy foundation bolt and anchor stud manufacturing for civil infrastructure</li>
<li>High-tensile tie rod production for bridges and steel mill buildings</li>
<li>Transmission tower and railway track fastener fabrication</li>
<li>Heavy equipment hydraulic cylinder rod and piston shaft threading</li>
</ul>
<p>Built under strict ISO 9001:2015 quality standards at our Ludhiana works. Run-off testing with buyer-specified steel bar grades is completed prior to factory dispatch or container export packing.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Range | 32-54, 54-85 |
| Weight (KG) | 550, 990 |
Steel Bar Threading Machine Works QA & Export Packaging Protocol
✓ Thread Geometry & Pitch Gauge Verification Protocol
- • Thread Pitch & Gauge Inspection: Sample threads cut or rolled on bar/pipe stock verified with calibrated Go / No-Go thread ring and plug gauges (IS 554 / ISO 7 / IS 16172).
- • Chaser / Roll Die Parallelism: Die head trip mechanism and roll die spacing aligned within 0.02 mm under full cutting and forming torque.
- • All-Geared Headstock Burn-In: 48-hour continuous trial of all spindle speeds and coolant circulation under loaded cutting conditions to ensure thermal stability.
- • Thread Sample Sign-Off: Physical threaded test samples preserved and HD video of threading cycle sent for buyer approval before packing.
Precision Threading Machine Transit Protection
- • Die & Lead Screw Wax Coating: Chasers, thread rolls, vice jaws, and lead screws coated with heavy-viscosity protective rust-preventive petroleum wax.
- • Carriage Mechanical Locks: Workpiece carriage and rack gear secured to prevent movement and shock during sea transit.
- • Cabinet Desiccant Packs: Hermetically sealed silica gel canisters placed inside control enclosures to prevent condensation.
- • ISPM-15 Heat-Treated Crating: Heavy wooden box packaging compliant with international maritime phytosanitary export standards.
