Heavy Industrial SPM
Model: NCT-SPM-75
Comprehensive Machine Overview

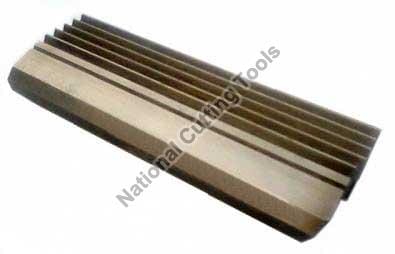

Engineered for high-throughput production in demanding fabrication environments, the Tangential Chaser by National Cutting Tools is built for <p>Tangential Chasers by National Cutting Tools are premium high-speed steel (HSS) threading dies engineered for industrial pipe, bolt, and bar threading machines. Unlike radial chasers that cut with their side profile and have limited regrind life, tangential chasers are mounted tangentially to the workpiece and cut on their front end face. This tangential geometry allows chasers to be repeatedly sharpened simply by grinding the chamfer angle, utilizing up to 80% of the chaser length for exceptional tool economy.</p>.
<p>Manufactured from premium vacuum-heat-treated M2 (6/5/2) and cobalt-alloyed M35 high-speed steel, our tangential chasers achieve working hardness of 62 to 65 HRC with superior red hardness and wear resistance. Available in complete sets of four chasers, each set is precision CNC ground with pitch-matched thread forms conforming to BSP, BSPT, NPT, metric, BSW, and UNC standards.</p>
<h3>Key Features</h3>
<ul>
<li><strong>M2 & M35 Premium High-Speed Steel:</strong> Vacuum hardened and double tempered to provide razor-sharp cutting edges and high resistance to chipping on tough steels.</li>
<li><strong>Multi-Regrind Tangential Design:</strong> Chasers can be resharpened dozens of times by simple face grinding, delivering up to 10 times the usable life of radial dies.</li>
<li><strong>CNC Thread Grinding Accuracy:</strong> Form ground to strict Class 2 / Medium fit tolerances, producing smooth thread flanks and accurate pitch lead.</li>
<li><strong>Standard & Special Thread Profiles:</strong> Complete inventory of BSP, BSPT, NPT (taper 1:16), metric (M6 to M65), BSW, UNC, and custom pitches.</li>
<li><strong>Interchangeable Die-Head Fit:</strong> Compatible with all standard Landis, NCT, and international tangential die heads across diverse machinery brands.</li>
<li><strong>Optional TiN / TiCN PVD Coatings:</strong> Surface coatings available to reduce friction and extend tool life when threading stainless steel or alloy bars.</li>
</ul>
<h3>Applications</h3>
<ul>
<li>Pipe threading for fire sprinkler, water, gas, and plumbing lines</li>
<li>High-output foundation bolt, anchor stud, and U-bolt manufacturing</li>
<li>TMT rebar mechanical coupler threading</li>
<li>Scaffolding tie rod and jack screw thread cutting</li>
</ul>
<p>Manufactured and 100% inspected at the National Cutting Tools tooling division in Ludhiana, Punjab. Every set is serialized, pitch verified with optical profile projectors, and packaged for domestic delivery and global export.</p>
Engineering Data Matrix
| Technical Parameter | Operational Specification / Value |
|---|---|
| Type | Tangential |
| Material | Metal (High-Speed Steel) |
| Color | Golden |
| Shape | Rectangle |
| Surface | Polished |
| Feature | Rust Proof |
Tangential Chaser Works QA & Export Packaging Protocol
✓ Thread Geometry & Pitch Gauge Verification Protocol
- • Thread Pitch & Gauge Inspection: Sample threads cut or rolled on bar/pipe stock verified with calibrated Go / No-Go thread ring and plug gauges (IS 554 / ISO 7 / IS 16172).
- • Chaser / Roll Die Parallelism: Die head trip mechanism and roll die spacing aligned within 0.02 mm under full cutting and forming torque.
- • All-Geared Headstock Burn-In: 48-hour continuous trial of all spindle speeds and coolant circulation under loaded cutting conditions to ensure thermal stability.
- • Thread Sample Sign-Off: Physical threaded test samples preserved and HD video of threading cycle sent for buyer approval before packing.
Precision Threading Machine Transit Protection
- • Die & Lead Screw Wax Coating: Chasers, thread rolls, vice jaws, and lead screws coated with heavy-viscosity protective rust-preventive petroleum wax.
- • Carriage Mechanical Locks: Workpiece carriage and rack gear secured to prevent movement and shock during sea transit.
- • Cabinet Desiccant Packs: Hermetically sealed silica gel canisters placed inside control enclosures to prevent condensation.
- • ISPM-15 Heat-Treated Crating: Heavy wooden box packaging compliant with international maritime phytosanitary export standards.
International Shipping Destinations & India Supply Network
National Cutting Tools manufactures and configures the Tangential Chaser for seamless integration into international fabrication lines and domestic scaffolding manufacturing plants. All machinery is customized for local electrical grids, certified for regional compliance, and dispatched with seaworthy protective packaging.
Primary International Export Destinations
All Export Hubs →Pan-India Fast Freight Dispatch (Ludhiana Works)
India Directory →Full-truckload (FTL) and part-load freight dispatch directly from our central manufacturing works at Focal Point, Ludhiana. Factory engineers provide on-site leveling, tool alignment, and operator training across all major industrial manufacturing clusters:
